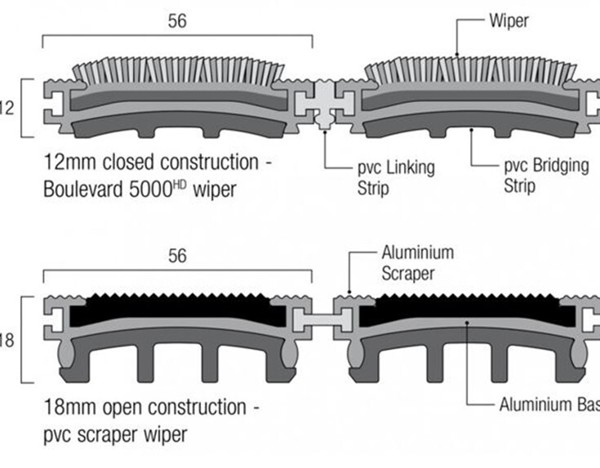

Gradus Esplanade 5000 is constructed from either ECONYL® regenerated solution dyed nylon wipers from the Boulevard 5000 range or black pvc scraper wipers. These are supported with an aluminium base with pvc bridging strips that provide additional strength and are combined with pvc linking strips (available in Grey or Black). The aluminium base is available in a choice of mill finish or a choice of three bronze anodised finishes. The ECONYL® regenerated solution dyed nylon wipers provide excellent soil and moisture retention and are available in a choice of nine colours.

Gradus Esplanade 5000 is available in 12 and 18mm thicknesses with an open or closed construction.

It is tested to withstand weights of up to 150kg per wheel (up to 600kg over 4 wheels) dependant on configuration and finish and has also been tested for flammability and slip resistance.

Gradus Esplanade 5000 can be manufactured to most shapes subject to approval of a template and is offered with a 10 year warranty in mill finish and 7 years with bronze anodised finish (subject to terms and conditions).

Esplanade 5000 coordinates with Boulevard 5000 for a complete entrance matting solution.

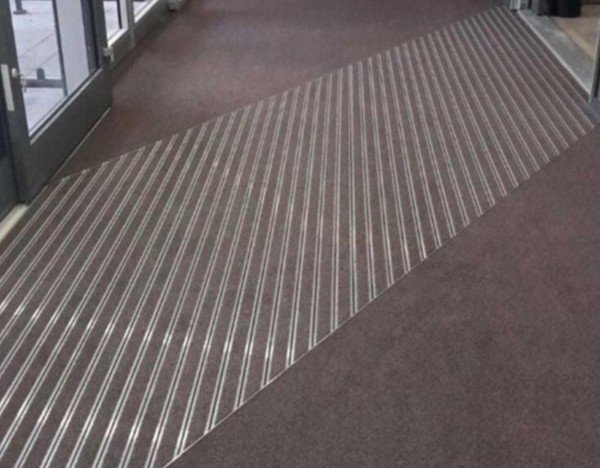

Typical applications: Large hospitals, offices, schools & department stores. Note – Open construction medium wheeled traffic areas only. Bronze anodised finishes medium foot and wheeled traffic areas only.

Gradus Esplanade 5000 is available on a supply only or supply and fit basis making use of the Syncros In-house Installation team.

Available on supply only or supply & fit

Available in open or closed construction

Pvc linking strips available in black or grey (closed construction).

A push-in hinge is available when installing Esplanade 5000 in restricted areas

Supplied with edging strips and divider bars

Flammability - BS EN 13501-1 Class Cfl-s1

Slip-resistance (HSL ramp test) - low risk of slip

Warranty - Mill finish aluminium 10 years

Warranty - Anodised 7 years
